Application · Yacht and boat building
The galley.
Where high standards meet tight space.
The passage between galley and saloon is narrow, every kilo counts for displacement, and the cabins are just a bulkhead away. The DishDrawer™ washes at full capacity at half the niche height and pulls forward instead of folding open. In series production on the Hanse 575 and in the Bavaria R series.
410 mm
Installation height, single unit
43 dB(A)
Operating noise
0 mm
Swing clearance in the galley
10–12 m
Boat lengths with series installation
Why this matters
On board, the galley decides how long you want to stay.
On a 12-metre yacht, the galley is the space where the promise of comfort and reality part ways fastest. Anyone anchored in a bay for a week does not want to wash up in salt water.
An appliance that respects installation space, weight and consumption yet still washes at full capacity is no longer an add-on but a feature that makes the difference.
Series installation on board — Double DishDrawer™
Challenge & solution
Six bottlenecks in boat building — and how the DishDrawer™ resolves them.
Build space
Maximum function in minimum space.
With an installation height of just 410 mm and a width of 599 mm the DishDrawer™ fits into a standard kitchen block and needs only half the niche height of a conventional dishwasher.
Clearance
Clear walkways, even during the wash cycle.
Instead of a door that swings open, the DishDrawer™ opens like a drawer. This keeps the passage between the galley and the saloon clear at all times.
Weight
Less weight on board.
With an appliance weight of just 31 kg the DishDrawer™ offers the function of a full dishwasher without adding unnecessary weight to the weight and trim calculation.
Noise
Comfort also shows in the noise level.
At just 43 dB(A) the DishDrawer™ runs so quietly that the wash cycle is barely noticed. Whether over dinner in the saloon, a glass of wine on deck or when someone is already asleep in the neighbouring cabin – comfort on board remains undisturbed.
Off-grid use
Efficient with water and energy.
Six place settings per cycle allow economical operation without using fresh water and energy for a machine that is only partly filled – ideal for longer passages without a marina.
Fit-out quality
Adapts to your interior.
The DishDrawer™ is fully integrated behind your furniture front – whether you work with teak, bamboo or walnut. The appliance is operated via the knock-to-pause function, without visible controls.
On-board power & connection
Shore power, generator or inverter.
The DishDrawer™ is a 230-volt appliance. On board it runs on shore power, a generator or an inverter from the on-board system — all three are implemented at our series partners in boat building.
When sizing the inverter, the inrush current of the heating phase is decisive. We handle this coordination on a per-project basis with your electrical engineering team.
Supply voltage
220–240 V
Mains frequency
50 Hz
Current
10 A
Water pressure
100–1000 kPa
Water inlet
3/4″ BSP (20 mm)
Rec. inverter
1,000 watts
Inrush current
no inrush current
Water consumption
7.9 litres (per drawer and cycle)
Configurations
Three variants for three boat sizes.
Dimensions in millimetres (height × width × depth), all variants for a customer-supplied furniture front.
| Model | Configuration | Dimensions H×W×D | Capacity | Typical boat class |
|---|---|---|---|---|
| DD60SHI9 | Single | 410×599×571 | 6 place settings | Motorboat/sailing yacht from 10 m |
| DD60SHTI9 | Single, tall version | 454×599×571 | 6 place settings, plates 310 mm | Galley with larger dishware |
| DD60DHI9 | Double | 820–880×599×571 | 12 place settings, 2×6 | Yacht from 12 m, charter |
In the double unit, both drawers run independently. In charter operation this covers the changeover between two crews. Knock-to-Pause is available on all three variants.
Does one of the variants fit your galley?
CAD files, dimensioned drawings and model-specific data sheets are in the Design Kit — free of charge.
References
Already on board — sailing and motor boats.
Two series installations in different boat classes, both behind a customer-supplied furniture front.
12-metre sailing yacht · series integration
Hanse 575

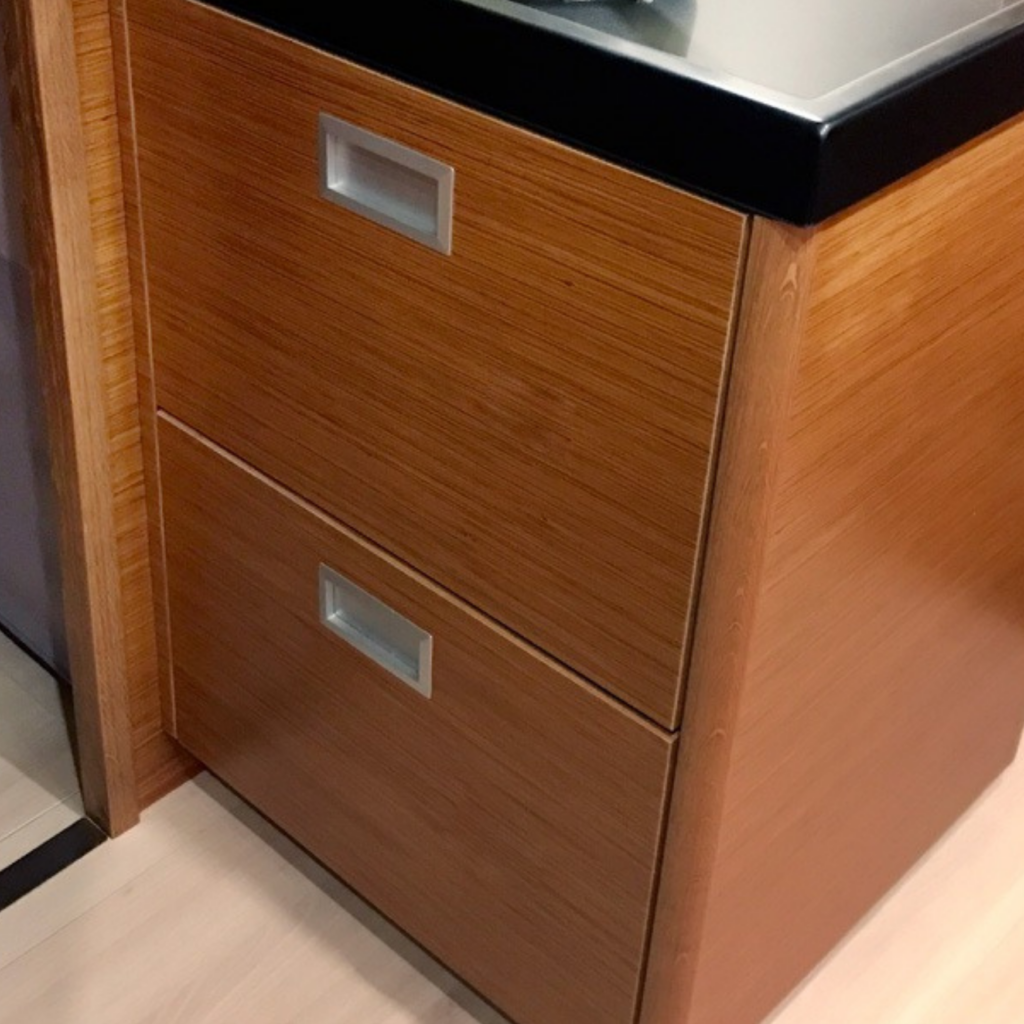

Single and double DishDrawer™ in the galley, depending on the model, fully integrated with recessed grips. The double version offers two independent drawers for longer trips with a full crew.
10-metre motorboat · series integration
Bavaria R series

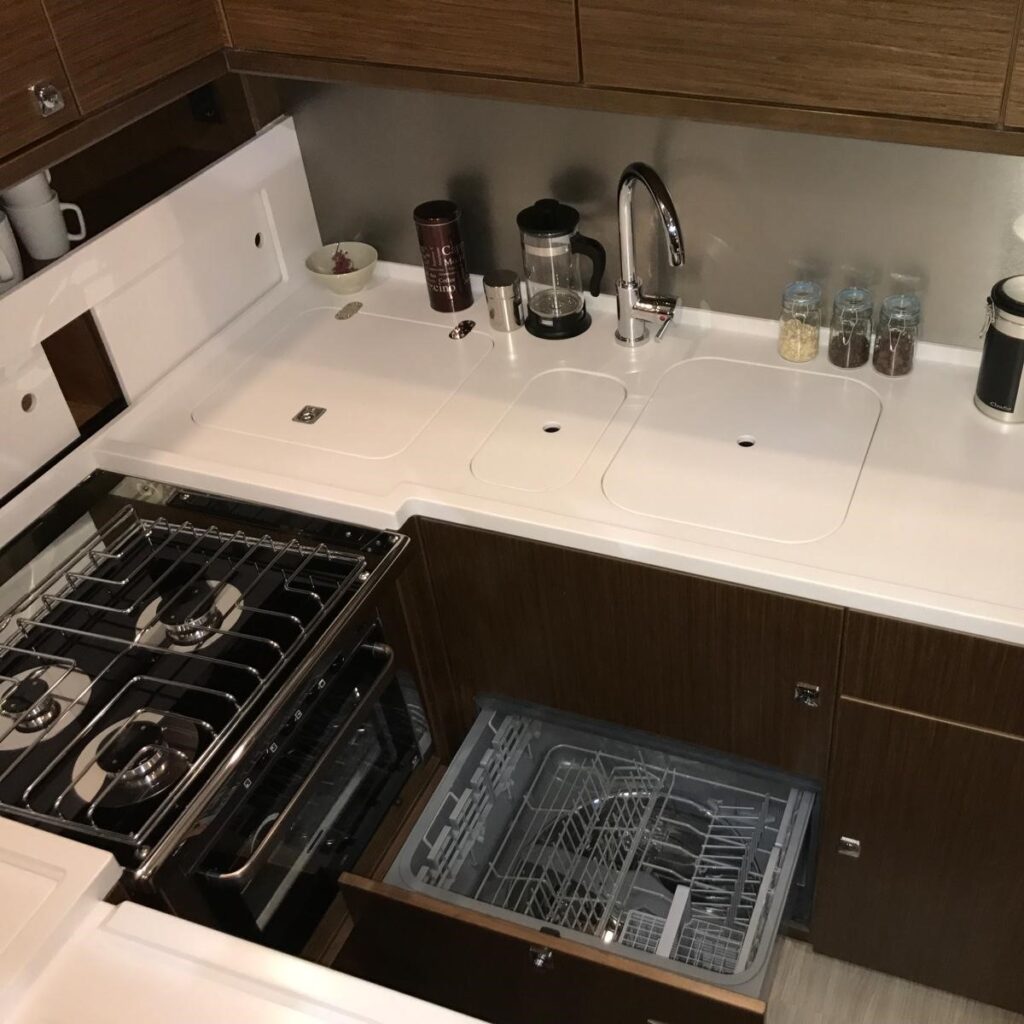

Single DishDrawer™ right next to the hob in the kitchen block — full-capacity washing in a footprint that would otherwise only have served as storage.
Frequently asked engineering questions
What design engineers want to know first.
Whatever is not covered here, we clarify in conversation.
Does the DishDrawer™ fit a standard kitchen block on board?
Yes, the compact dish drawer is ideal for the galley. At 60 cm wide and only approx. 41 cm high it fits perfectly into standardised marine kitchen grids. The shallow installation depth leaves room behind it for hull sides or pipework, while the drawer principle makes access far easier in tight spaces.
How does the appliance behave under heel and in rough seas?
Thanks to the closed tub design („drawer“) no water spills over even at moderate heel. The electronics lock the drawer automatically during operation. For heavy seas and sailing, the front must additionally be secured against sliding open unintentionally with a mechanical lock (e.g. a flush marine push-lock).
Is the appliance approved for use in salt-air conditions?
The DishDrawer™ is designed as a premium domestic appliance and does not hold an explicit IPX marine certification. However, the high-quality stainless steel interior and the protected electronics have proven themselves over many years in the interior (galley) of yachts. For installation in a salty environment we recommend good ventilation of the installation recess against condensation in order to prevent corrosion in the long term.
Is the on-board power enough, or is shore power needed?
With a pure sine wave inverter (from 1,500 W) and a solid lithium or AGM battery bank the appliance runs off-grid from the 12 V / 24 V on-board system. One wash cycle needs only around 0.5 kWh and just under 7 litres of water. Shore power or the generator are not strictly necessary for operation, provided the charging equipment on board is up to it.
What does service look like for the end customer?
Through coolHouse you have access to a Europe-wide network of service partners. Should a service case arise on a yacht, we coordinate the repair in the nearest harbour or send spare parts directly to the marina.
Can we get a sample unit?
Yes, coolHouse supports shipyards, refit companies and yacht designers with prototype construction. We are happy to provide you with a sample appliance on special B2B terms for checking the fit in the interior. Simply contact our sales team with your project data for fast processing.
Your project
Let us talk about your boat.
A single contact who understands your galley, your weight budget and your series goals.
Your contact
Kersten Hoppe
Phone
Mobile
coolHouse AG
Bahnhofstraße 10 · 83059 Kolbermoor
Request a call
Response within 2 business days.
